Signal Dynamic Supervisor
The Signal Dynamic Supervisor is the signalling unit fitted at the protected premises. It connects to an intruder or fire alarm panel and sends its signals to the alarm receiving centre over as many as four paths, checking each of them continuously.
Three models
Every model has the same panel connections, inputs and relays. They differ in the paths they provide.
| Model | Paths | Suited to |
|---|---|---|
| Supervisor Core IP | Ethernet and Wi-Fi | Sites with a dependable fixed connection |
| Supervisor Core | Ethernet, Wi-Fi and one 4G mobile path | Sites needing a mobile path alongside the fixed connection |

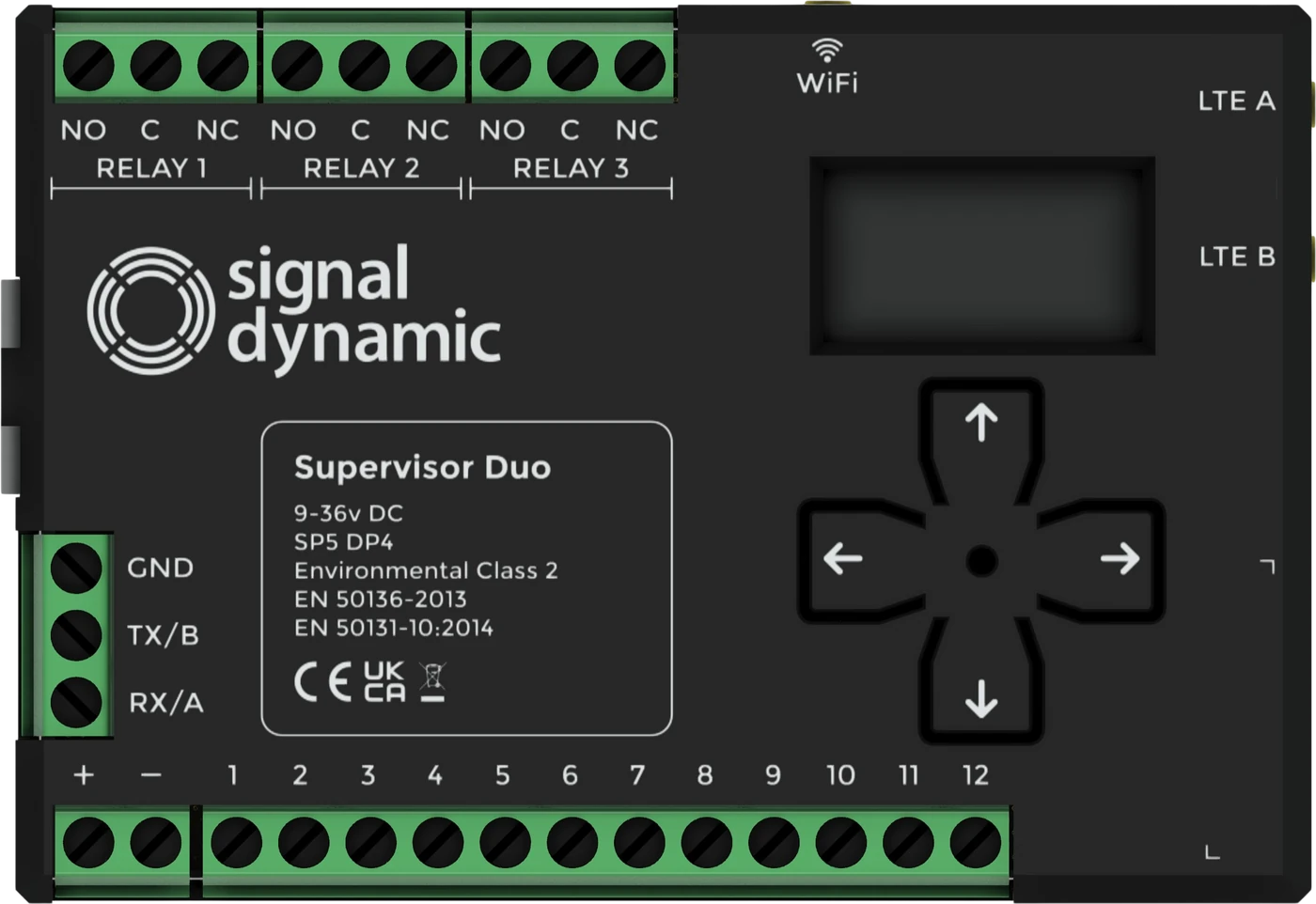

| Supervisor Duo | Ethernet, Wi-Fi and two 4G mobile paths | Sites needing the highest resilience, with two independent mobile paths |

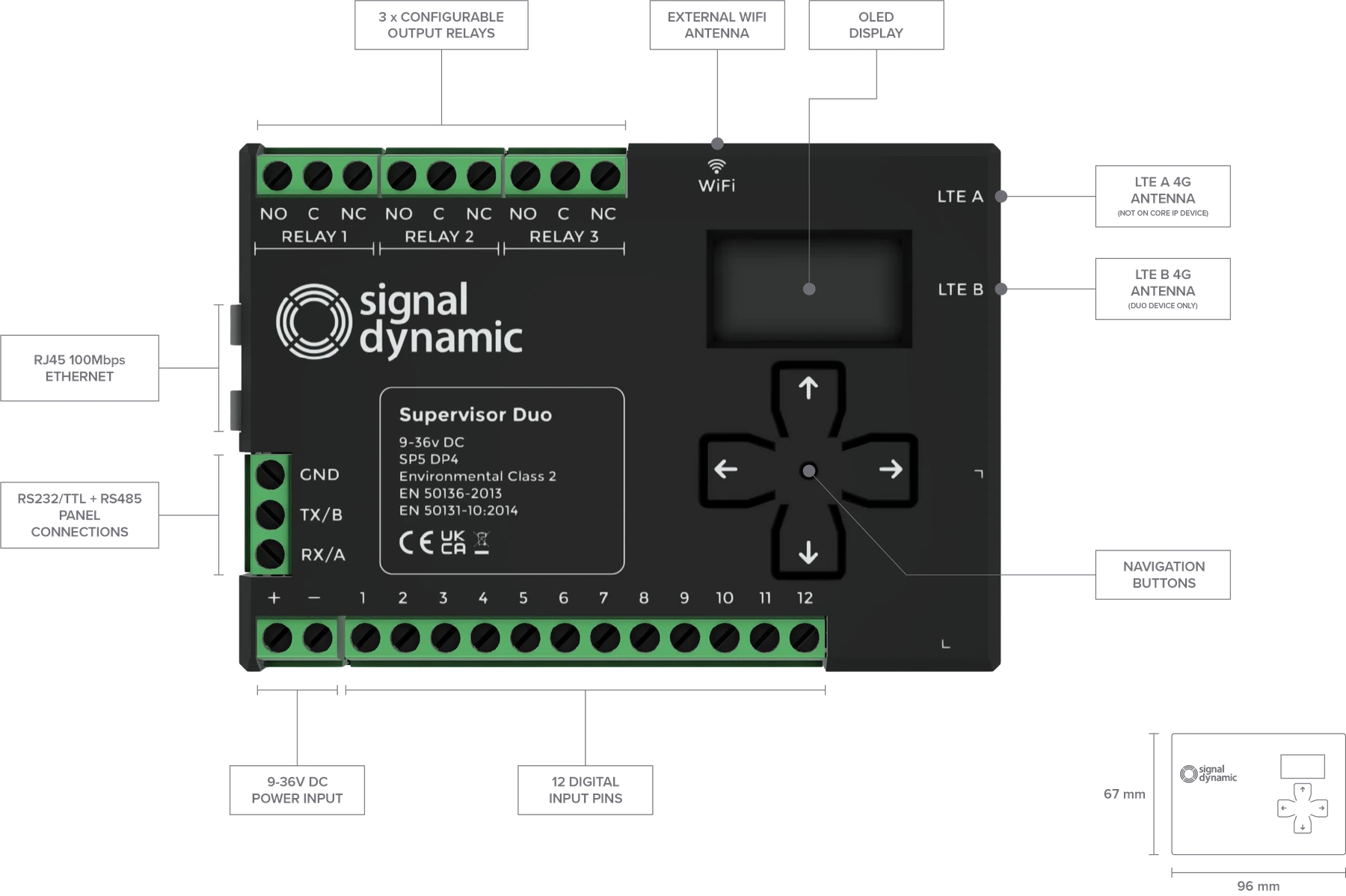

Connections
Specification
| Item | Detail |
|---|---|
| Signalling applications | Intruder and fire |
| Paths | Ethernet (100 Mbps), Wi-Fi, and up to two 4G mobile connections with multi-network SIMs |
| Digital inputs | 12 |
| Output relays | 3, configurable, each normally open or normally closed |
| Panel connections | RS232 or TTL serial, RS485, digital inputs, and dial capture |
| Dial capture formats | Fast Format, Contact ID and SIA |
| Delivery to the alarm receiving centre | SIA DC-09 over IP |
| Path verification | About every 30 seconds, on every path |
| Security | AES-256 encryption, with the unit and the network authenticating each other |
| Firmware | Updated remotely |
| On the unit | Display and navigation buttons for commissioning and diagnostics |
| Power | 9 to 36 V DC |
| Size | 96 mm by 67 mm |
| Environmental class | Class 2 |
| Warranty | 10 years |
How it connects to the panel
The Supervisor is designed to work with the panel already on the wall. A panel with a digital communicator can be connected by dial capture: the Supervisor presents the line the communicator expects, and takes the signal in Fast Format, Contact ID or SIA. Panels with a serial connection can pass their events over RS232 or RS485, and any panel can drive the twelve digital inputs directly.
Three relays let the Supervisor signal back to the panel, for example to report a path fault.
- Dial captureFor panels with a digital communicator
- SerialRS232, TTL or RS485
- Digital inputsTwelve, wired from the panel's outputs
- RelaysThree, back to the panel
Every path, checked all the time
Conventional signalling often discovers that a backup path has failed only when the primary path fails too. The Supervisor sends a check down every path about every thirty seconds and expects it to be answered, so a path that has stopped working is reported while there is still time to put it right.
The two mobile paths on the Duo each use a multi-network SIM, able to move to another mobile network if the first is unavailable.
Standards and grades →- CheckedAbout every 30 seconds
- ReportedTo the installer and the alarm receiving centre
- Mobile pathsMulti-network SIMs
